PostSubject: e51 orig power switch ways done!   February 15th 2011, 01:23

e51 orig power switch ways done!









e51 orig power switch ways done sa tyaga sa pag kutkut sa board kasi tuklap ang isang
capasitor sa ibaba ng switch!

status:
e51 orig no power!

materials:
1.soldiring iron and led
2.kunting jumper wire
3.niddle pang kutkut a board!

action taken
1. pagbukas ko sa unit eh tuklap na pala ang pisa kahit eh short mo pa sa tweser eh ayw talaga
kaya kutkutan na talaga ito.
2. kutkutin mo lang ang nalanit na pisa ang isang paa lang yung nasa kanan nga paa!
3.din tester mo ang linya nya kung saan ang connection nakita ko kaagad kaya jumper na ako
4.jumper mo lang ang kinutkut mo nga pisa patunga sa isang capasitor ng jan sa pics!

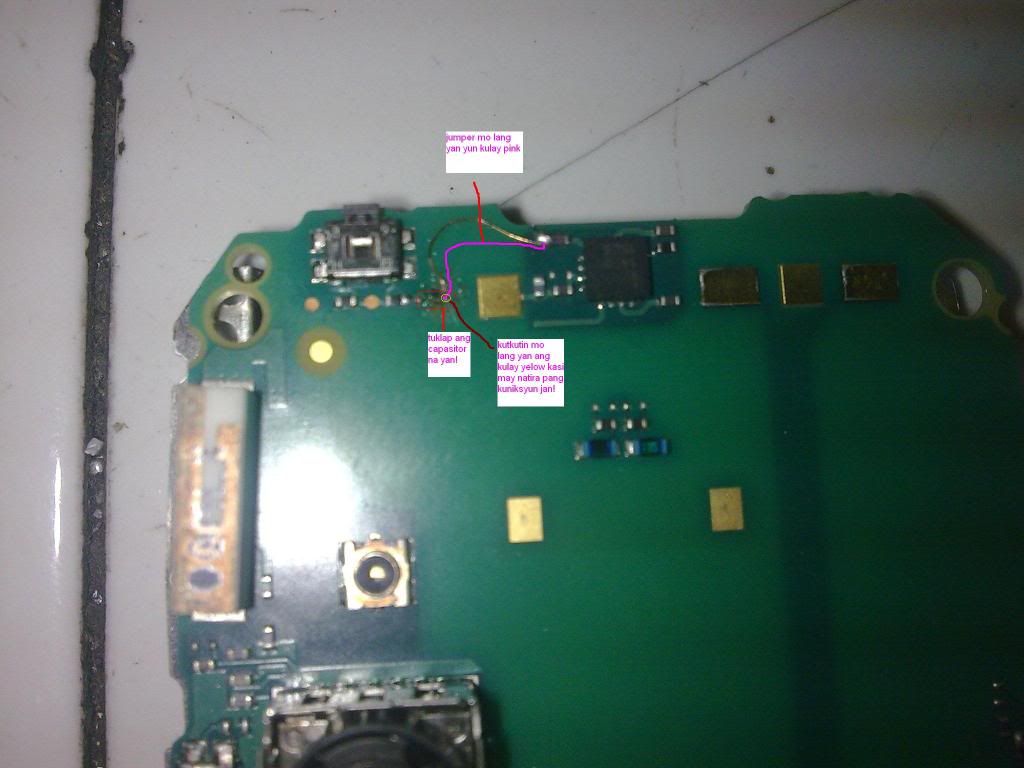

hito ang pics:


sundin mo lang yan

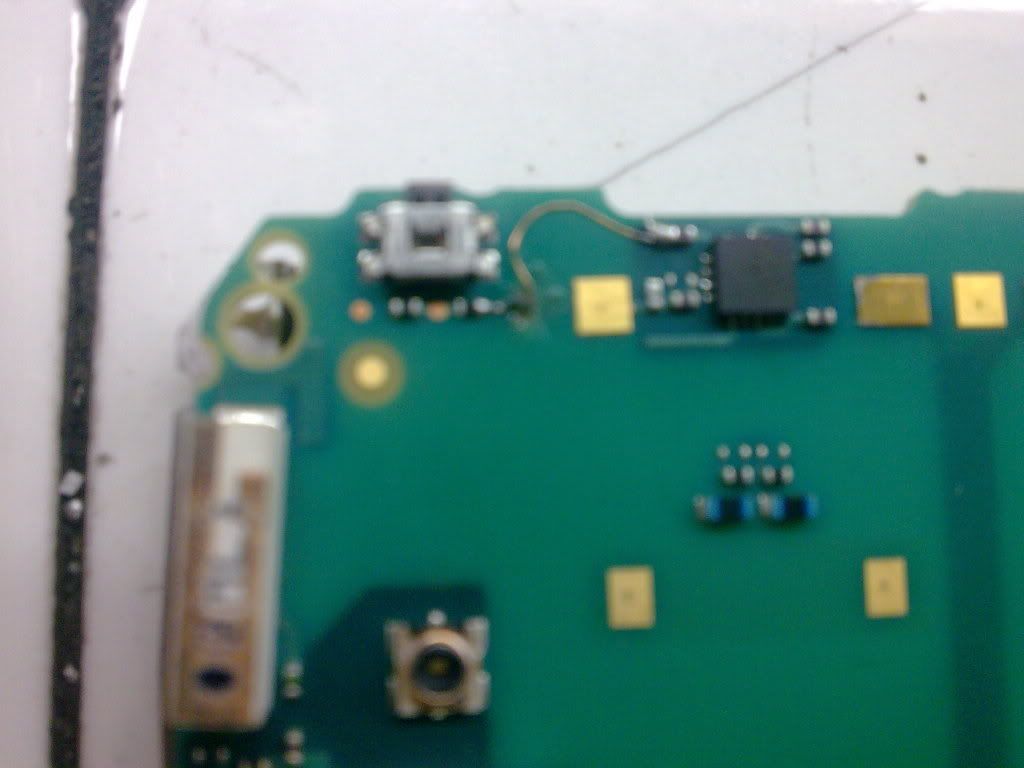

picture sa jumper;

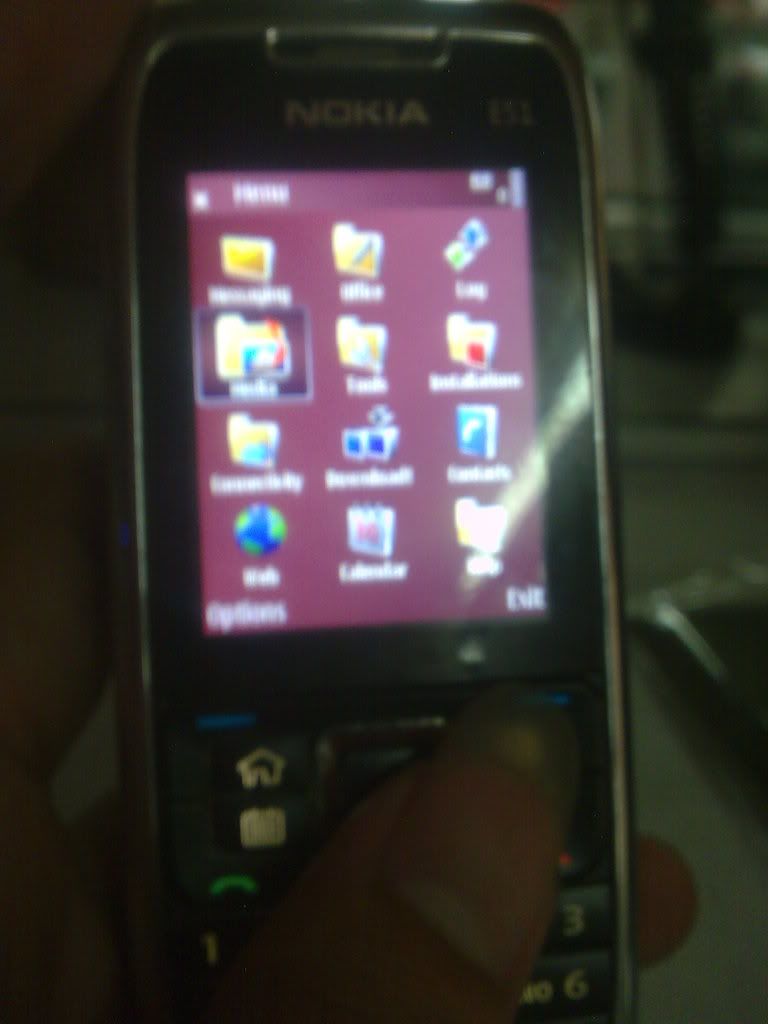

phone is ok!







sana makatulong sa kagaya kung baguhan pa!
Back to top Go down
slasher23
Super Moderator
Super Moderator


Join Date : 2011-02-17
Location : butuan city
Male Age : 25
Cell Phone # : 09309072333
Posts : 213

PostSubject: Re: e51 orig power switch ways done!   March 14th 2011, 06:18

tnx poh sa sharing idol ..
