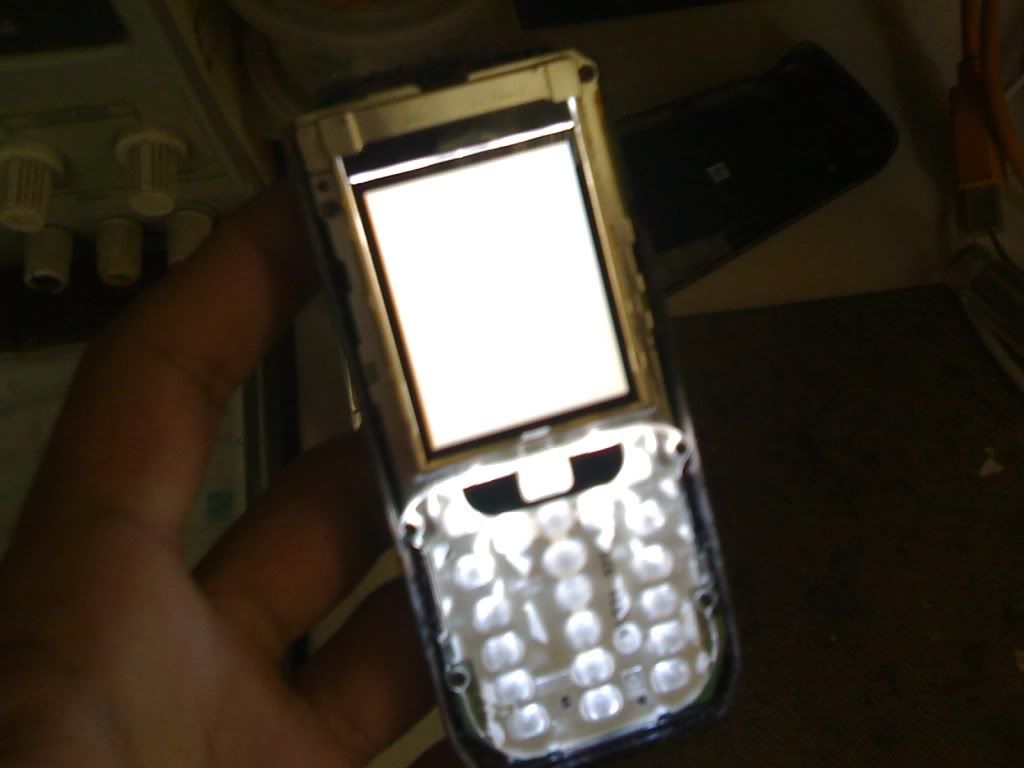

 NOKIA 1680c-2 White Screen Then Power Off (DONE)

View previous topic View next topic Go down
AuthorMessage
J.A.F
Senior V.I.P
Senior V.I.P


Join Date : 2011-08-27
Location : cavite
Male Age : 34
Cell Phone # : 09067219859
Posts : 22

PostSubject: NOKIA 1680c-2 White Screen Then Power Off (DONE)   July 2nd 2012, 00:17

[QUOTE=garcia;5881859]Good Morning Po Share Ko LAng Po!!!

cheers



Nung Una Po Ayaw Po MAg Info Sa HWK And HTI

KAya Ginawa Ko Po Sa JAf I Info

Pero Wala PArin KAya NAisipan Kong I Flash NA LAng

ILL MAKE BACK MUNA THE RPL(IMEI)

Eto Po Ung LOGS/FLASHING


Getting MCU ID

MCU ID: 0x3162
FLASH ID0: 317E0001 <=> SPANSION -> Type not in database Addr0: 0x01000000 - 0x01FFFFFF, SectorSize0: 11
FLASH ID1: 00010000 <=> Flash -> not used Addr1: 0x02000000 - 0x02FFFFFF, SectorSize1: 0
First 16 bytes: AD 7E B6 1A 1B BE 0B E2 7D 58 6B E4 DB EE 65 14
Checking RAM for ALGO...
Algo is ready...
Checking FAID calculation...
P-key nokia module version 01.02
Done!
Phone Restarted...
Checking path: C:\Program Files\Nokia\Phoenix\Products\RM-394\

Searching for default location of ini...
Checking path: C:\Program Files\Common Files\Nokia\DataPackage\Products\RM-394\
Scanning ini files...
Checking path: C:\Program Files\Common Files\Nokia\DataPackage\Products\RM-394\
FILES SET FOR FLASHING:
MCU Flash file: C:\Program Files\Common Files\Nokia\DataPackage\Products\RM-394\rm394__07.60.mcusw
PPM Flash file: C:\Program Files\Common Files\Nokia\DataPackage\Products\RM-394\rm394__07.60.ppm_aa
CNT Flash file: C:\Program Files\Common Files\Nokia\DataPackage\Products\RM-394\rm394__07.60.image_aa
ADSP Flash file: NONE
APE Variant file: NONE
APE User Flash file: NONE
Languages in ppm: English,Dannish,Norwegian,Swedish
Backing up PM Field 208 as RPL...
Setting local mode...
Failed! Aborting!
Failed to backup imei...
MCU: C:\Program Files\Common Files\Nokia\DataPackage\Products\RM-394\rm394__07.60.mcusw
Booting phone...
MCU ID: 0x3162
BOOT file: C:\Program Files\ODEON\JAF\Flash\u3_2nd.fia
Loader version: 04.46.01 -> Revision: 0007
Boot size is 0x09A8
Boot is ready...
FLASH ID0: 317E0001 <=> SPANSION -> Type not in database Addr0: 0x01000000 - 0x01FFFFFF, SectorSize0: 11
FLASH ID1: 317E0001 <=> SPANSION -> Type not in database Addr1: 0x02000000 - 0x02FFFFFF, SectorSize1: 11
First 16 bytes: AD 7E B6 1A 1B BE 0B E2 7D 58 6B E4 DB EE 65 14
Flash ID is 0x7E310100
Flash loader is C:\Program Files\ODEON\JAF\Flash\u3_amd.fia
Loader version: 04.46.01 -> Revision: 0007
Loader size is 0x7528; Loader chk: a2
Loader is ready...
P-key nokia module version 01.02
MSID: 84E784B2D3AC248B6E7113D500
MSID decoded: 2C40BAE900041038A8000000
FAID: 6CA6313F6D8C4F8D08FEC09E
Operation took 0 minutes 6 seconds...
Erasing...
Found 2 interval(s) to erase
Erasing area: 01000000 - 0101FFFF...
Erasing area: 01020000 - 01C3FFFF...
Operation took 0 minutes 58 seconds...
Writing...
Perm. Data Restore OK
Operation took 4 minutes 9 seconds...
Restarting MCU...
CNT: C:\Program Files\Common Files\Nokia\DataPackage\Products\RM-394\rm394__07.60.image_aa
Booting phone...
MCU ID: 0x3162
BOOT file: C:\Program Files\ODEON\JAF\Flash\u3_2nd.fia
Loader version: 04.46.01 -> Revision: 0007
Boot size is 0x09A8
Boot is ready...
FLASH ID0: 317E0001 <=> SPANSION -> Type not in database Addr0: 0x01000000 - 0x01FFFFFF, SectorSize0: 11
FLASH ID1: 317E0001 <=> SPANSION -> Type not in database Addr1: 0x02000000 - 0x02FFFFFF, SectorSize1: 11
First 16 bytes: AD 7E B6 1B 00 FF 10 40 00 00 00 00 00 00 00 00
Flash ID is 0x7E310100
File is already converted to 128k page...
Flash loader is C:\Program Files\ODEON\JAF\Flash\u3_amd.fia
Loader version: 04.46.01 -> Revision: 0007
Loader size is 0x7528; Loader chk: a2
Loader is ready...
P-key nokia module version 01.02
MSID: 84147C7E2DA79516E64518A819
MSID decoded: D26EBAF100041038AA000610
FAID: 200E64BFBC34796D40D03AC4
Operation took 0 minutes 5 seconds...
Erasing Content Pack...
Found 2 interval(s) to erase
Erasing area: 02000000 - 02DBFFFF...
Erasing area: 02DC0000 - 02F9FFFF...
Operation took 2 minutes 50 seconds...
Writing...
Perm. Data Restore OK
Operation took 1 minutes 35 seconds...
Restarting MCU...
Operation took 0 minutes 0 seconds...
Extracting Content Pack...
Running: (c) Nokia File Server
CNT Extract OK.
Operation took 0 minutes 5 seconds...
PPM: C:\Program Files\Common Files\Nokia\DataPackage\Products\RM-394\rm394__07.60.ppm_aa
Booting phone...
MCU ID: 0x3162
BOOT file: C:\Program Files\ODEON\JAF\Flash\u3_2nd.fia
Loader version: 04.46.01 -> Revision: 0007
Boot size is 0x09A8
Boot is ready...
FLASH ID0: 317E0001 <=> SPANSION -> Type not in database Addr0: 0x01000000 - 0x01FFFFFF, SectorSize0: 11
FLASH ID1: 317E0001 <=> SPANSION -> Type not in database Addr1: 0x02000000 - 0x02FFFFFF, SectorSize1: 11
First 16 bytes: AD 7E B6 1B 00 FF 10 40 00 00 00 00 00 00 00 00
Flash ID is 0x7E310100
Flash loader is C:\Program Files\ODEON\JAF\Flash\u3_amd.fia
Loader version: 04.46.01 -> Revision: 0007
Loader size is 0x7528; Loader chk: a2
Loader is ready...
P-key nokia module version 01.02
MSID: 8406280426D957DDF3A61EE911
MSID decoded: 3E4EBAE900041038A9000000
FAID: A9FB9E9AB796F0E6DDDF17BF
Operation took 0 minutes 6 seconds...
Erasing PPM...
Found 1 interval(s) to erase
Erasing area: 01C40000 - 01FFFFFF...
Operation took 0 minutes 19 seconds...
Writing...
Perm. Data Restore OK
Operation took 1 minutes 10 seconds...
Restarting MCU...
Flashing Done!
Operation took 12 minutes 1 seconds...

After flash processing...
Waiting for phone to boot...
Reading...
Phone type: RM-394, Software version: 07.60
IMEI: 353527025587242
Product Code: 0566420
Resetting PPC...
Done!

THEN AFTER PO Nyan Nag Phone Restricted NAman Po Sya
Try Ko I Unlock Sa JAf Pero No luck Po
Kaya Dinale Ko Naman Po Sya Sa HTI For UNLOCKING
Succesfull Po....:-)

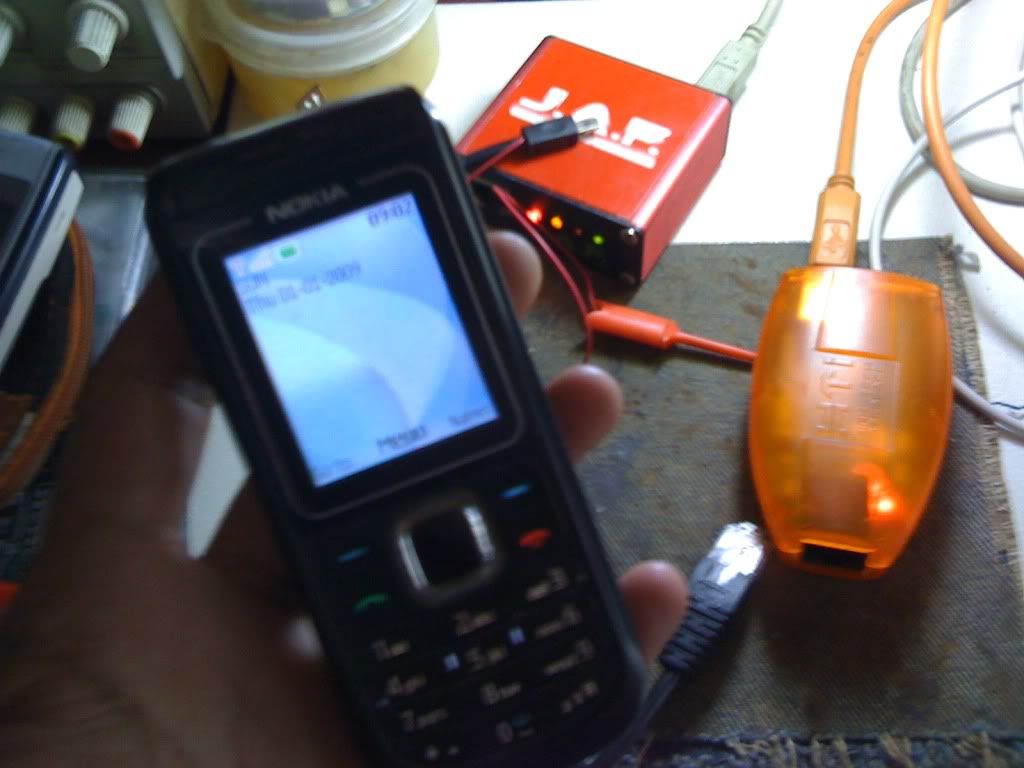

Eto NA Po Sya Ngayon.



Sana Po MAktulong LAng PAra MApabilis Po Ang Ating Gawa...

250 Php Lang.Smile[/QUOTE]
Back to top Go down
celtech.charlie
Senior V.I.P
Senior V.I.P


Join Date : 2012-03-01
Location : dasmarinas city cavite
Male Cell Phone # : 09289059114
Posts : 60

PostSubject: Re: NOKIA 1680c-2 White Screen Then Power Off (DONE)   July 2nd 2012, 04:00

nice good job pre
Back to top Go down
RENALD
Super Moderator
Super Moderator


Join Date : 2012-03-06
Location : ANTISEC.PHILIPINES
Male Age : 25
Posts : 233

PostSubject: Re: NOKIA 1680c-2 White Screen Then Power Off (DONE)   July 3rd 2012, 05:06

nice boss... proud to be jaf tayu../ hahahaha lol!
