 how to remove sealed uem of dct4?

View previous topic View next topic Go down
AuthorMessage
arLo
Super Moderator
Super Moderator


Join Date : 2008-06-18
Location : sta.rita samar/ksa
Male Age : 37
Cell Phone # : 09182050038
Posts : 22

PostSubject: how to remove sealed uem of dct4?   July 15th 2008, 18:50

Good Day po mga boss!!
mayron ako dito napag-praktisan na 6100.
ang problema nito ayaw gumana speaker eh,
nagawa ko na ang step by step sa speaker pero wala pa rin talaga.
kaya nag decide ako na iangat ang uem.

una po ganito,ganyan ang position ng board na medyo madali.
tinanggal ko muna yong 2 capacitor kasi dyan ko ilalagay ang soldering assist.

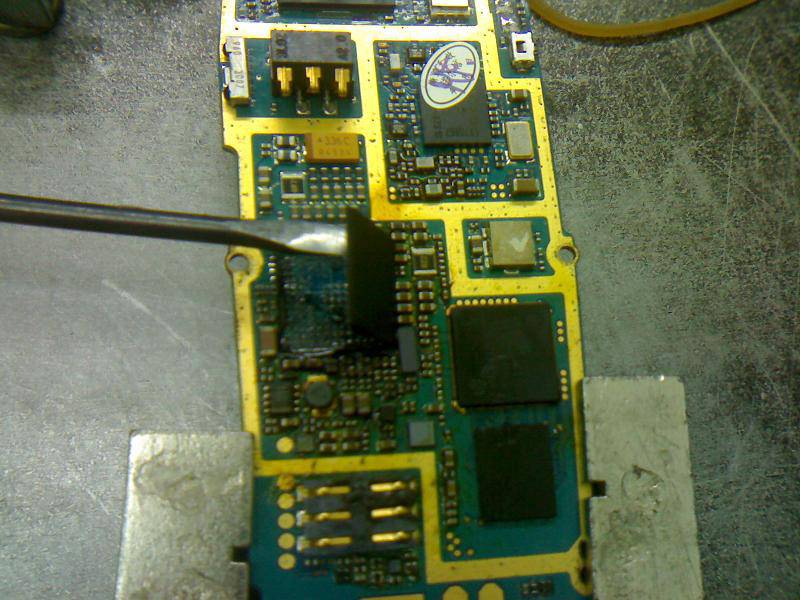

gaya nito.dito ko tinuklap ang uem.

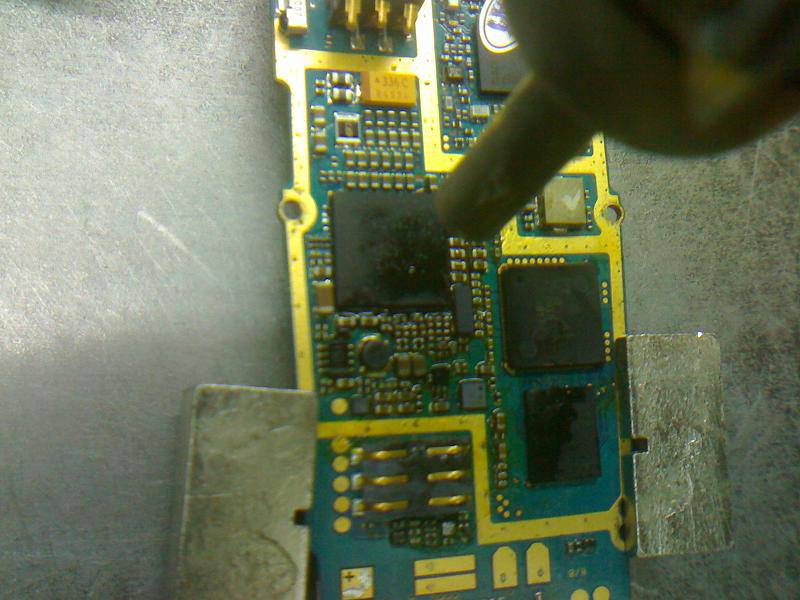

gaya ng dati alalay lang sa hot air kasi irereball ko pa yan.

nung naramdaman ko ng medyo malambot na dahan-dahan ko ng tinuklap.

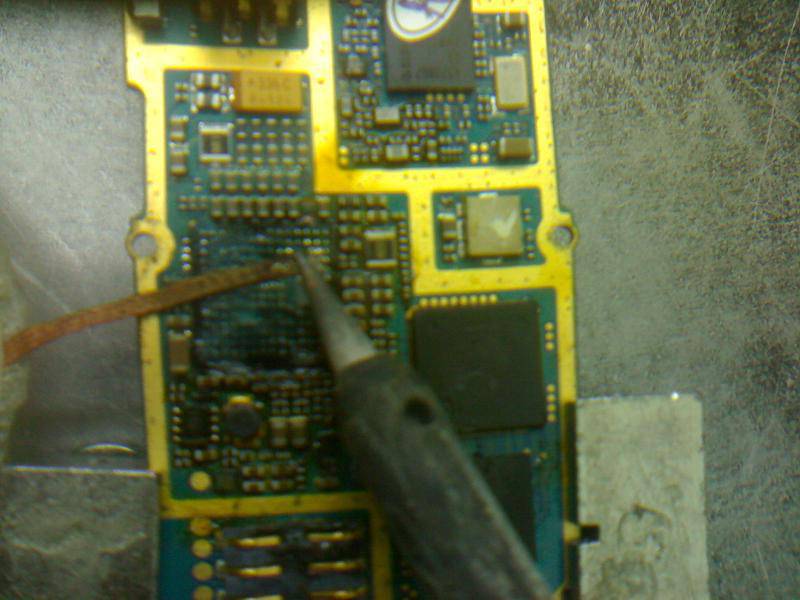

gamit pa rin ang solder weak para mahigop ang mga naiwang mga lead.

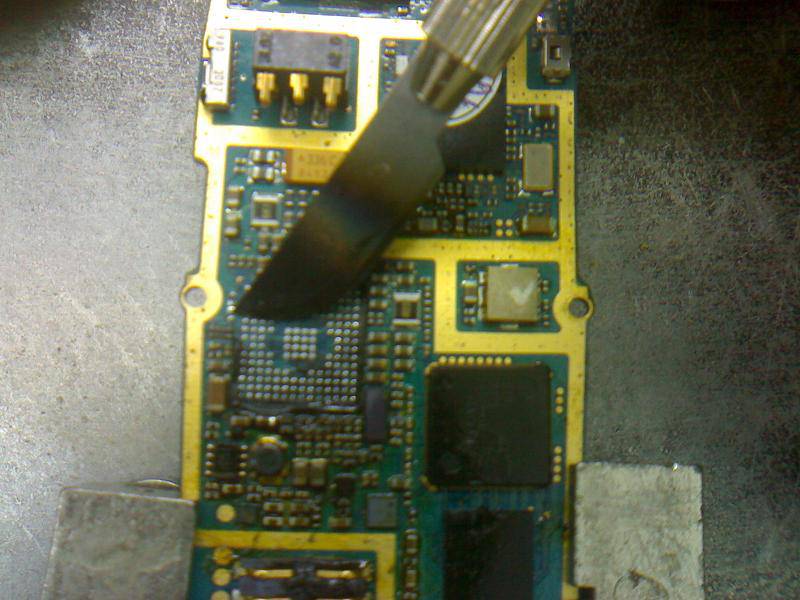

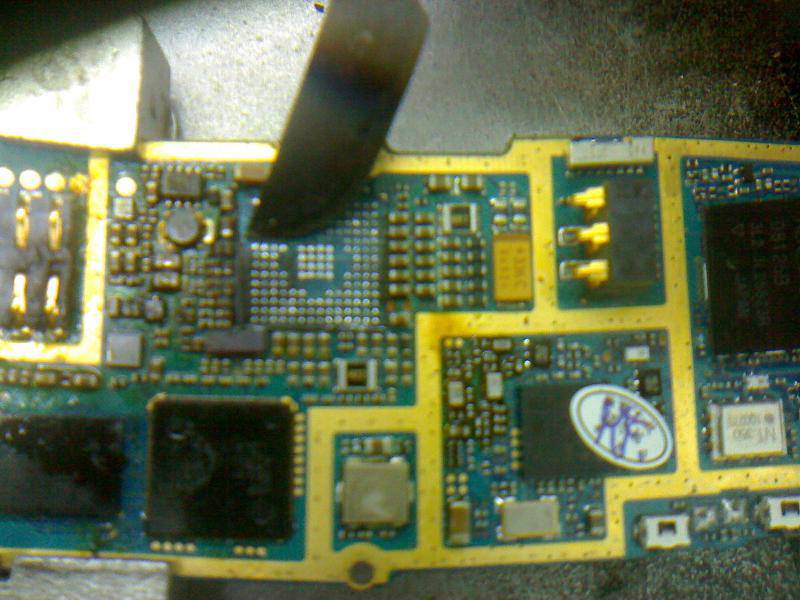

gamit ang cutter blade pang tanggal ng semento pansinin nyo na lang mga boss ang position ng board yan kasi ang pinakamadali para sakin.

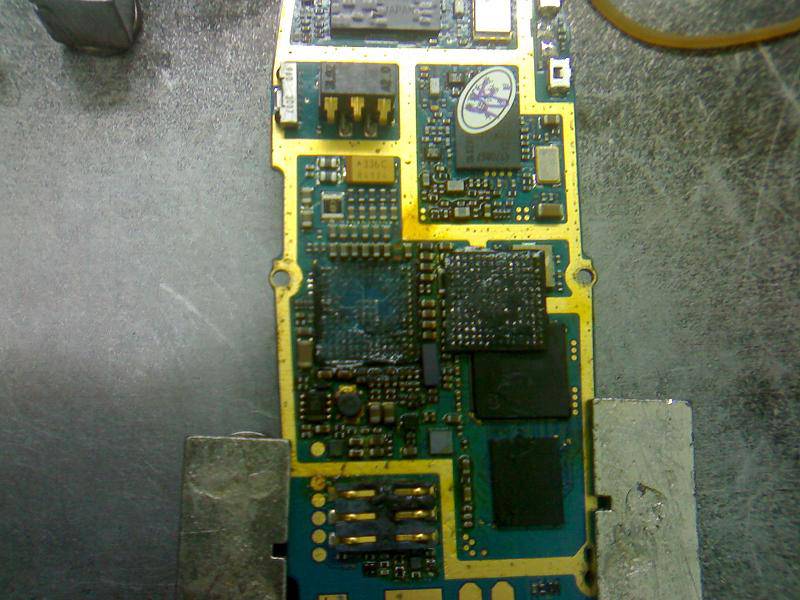

ayan po tanggal na lahat ang semento.malinis.

ni reball ko ang uem sa ganitong paraan:

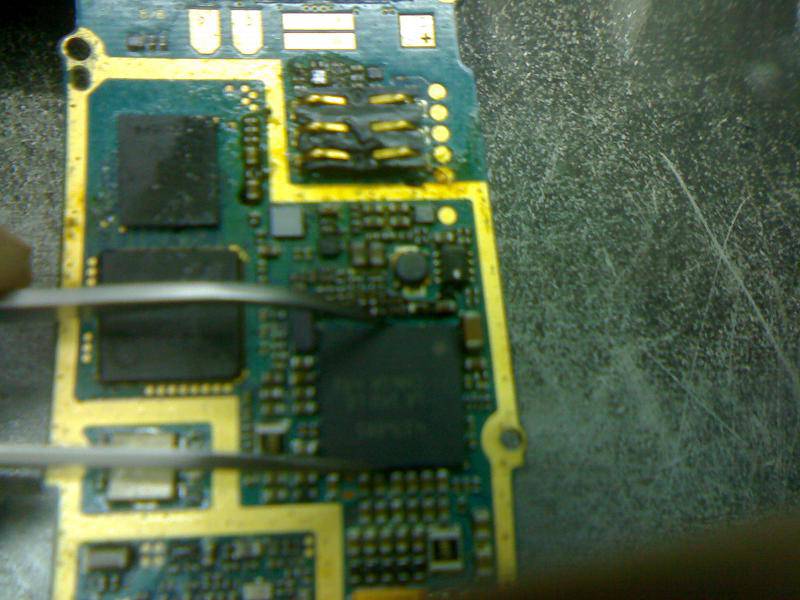

naibalik ko ang uem mga boss may power pa rin pero ayaw pa rin gumana ang speaker.kaya pinalitan ko na lang ng new uem tapos write rpl.

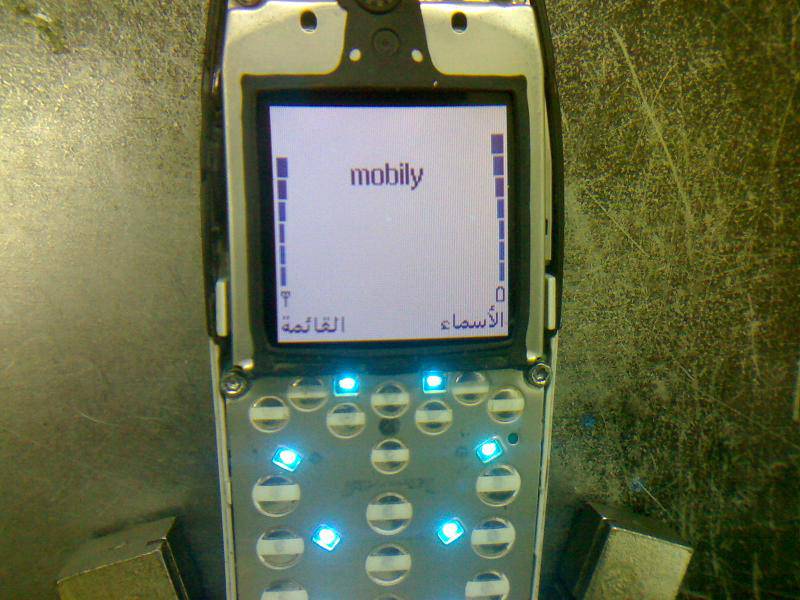

ok na po ngayon ang unit gumagana na pati speaker.

sana po makatulong sa mga di pa nakakapag-angat ng sealed type ic.
Back to top Go down
kitloy
Super Moderator
Super Moderator


Join Date : 2008-06-19
Location : Cebu City
Male Age : 33
Posts : 20

PostSubject: Re: how to remove sealed uem of dct4?   July 17th 2008, 09:36

thanks po dito bossing...Very Happy

ikaw talaga idol ko pagdating sa mga ganyan...

palagi lang po magshare ng iyong mga nalalaman..Very Happy
Back to top Go down
zhincks
V.I.P Member
V.I.P Member


Join Date : 2010-12-02
Posts : 24

PostSubject: Re: how to remove sealed uem of dct4?   December 9th 2010, 06:15

god bless u bossing
Back to top Go down
trhowin



Join Date : 2011-02-24
Posts : 6

PostSubject: Re: how to remove sealed uem of dct4?   February 24th 2011, 15:50

congratz boss.. nkatulong yan sa akin knina.... pro sa kunitng ingat hehehe...
Back to top Go down
dexan_11
Moderator
Moderator


Join Date : 2011-08-06
Location : nagcarlan, Laguna
Male Age : 34
Cell Phone # : 09279404006
Posts : 130

PostSubject: Re: how to remove sealed uem of dct4?   August 7th 2011, 07:36

wow master ang galing naman po!!! lumakas ang loob ko mag angat ng ic. thanks po.. god bless...
